Annke 16CH 4MP Wireless_PT Solar Security Camera System NVR
Annke 16CH 4MP Wireless_PT Solar Security Camera System NVR
Couldn't load pickup availability

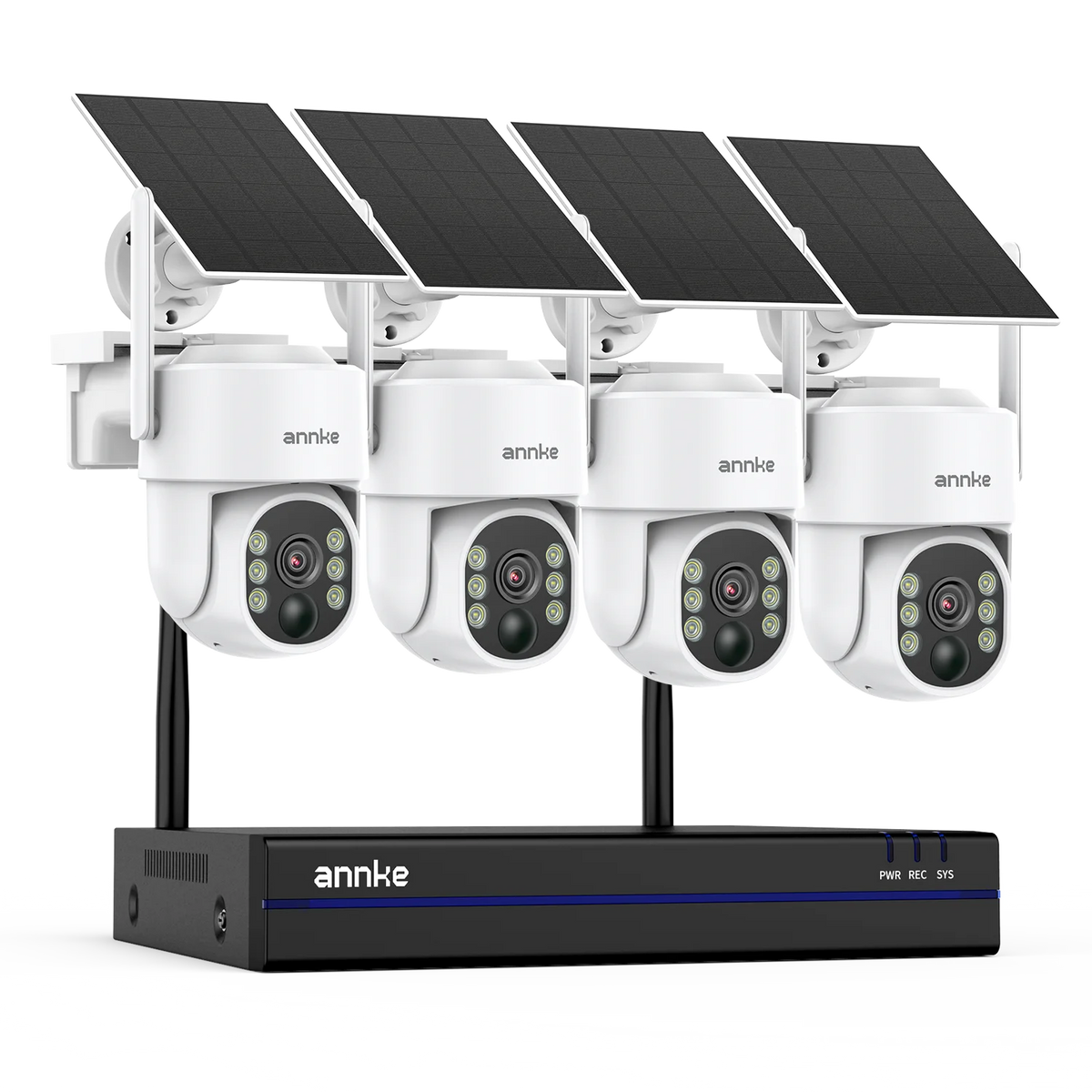

You secure your entire property without drilling into walls or running cables by installing this completely wire-free Annke solar security system that pairs four IP65-rated cameras with a sleek 16-channel NVR.

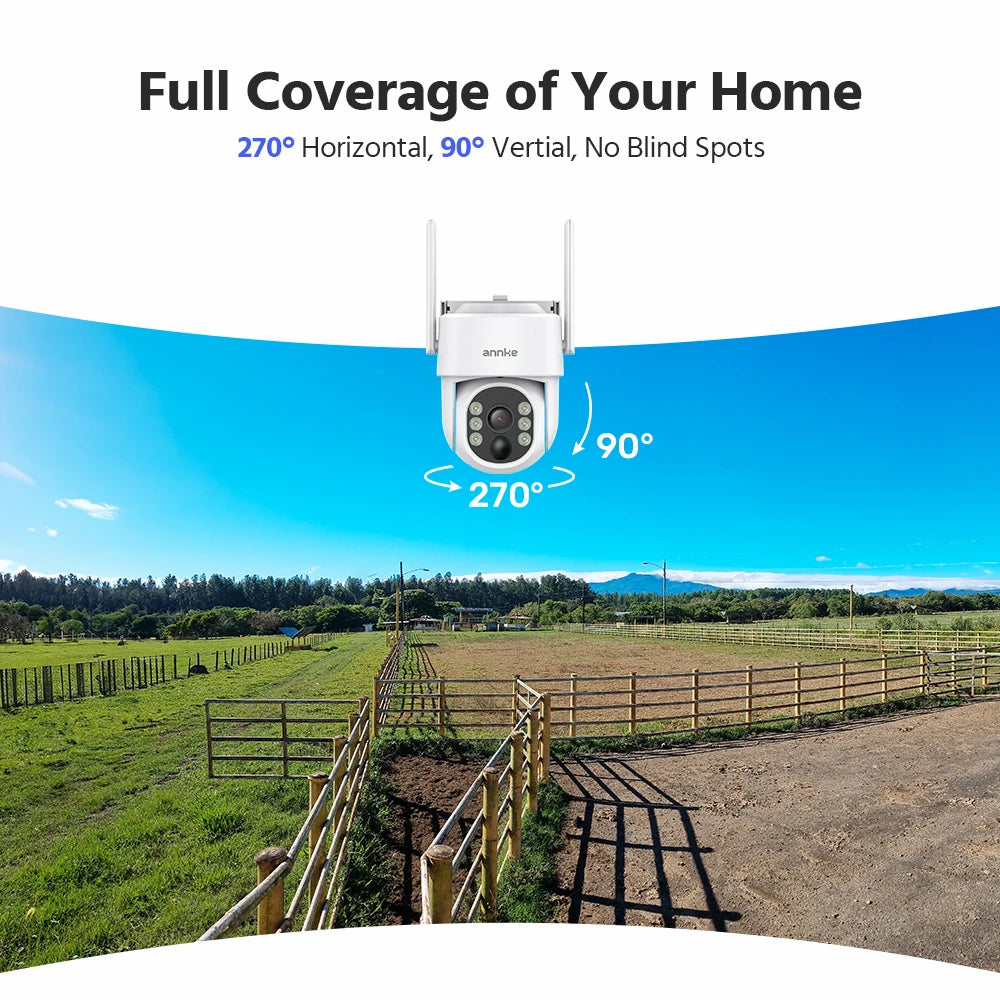

- Monitor your entire perimeter effortlessly as you control the 270° pan and 90° tilt to eliminate blind spots while capturing crisp 4MP video.
- Receive precise instant alerts when your PIR sensors distinguish actual people from windblown debris, triggering two-way audio so you can speak directly to visitors.

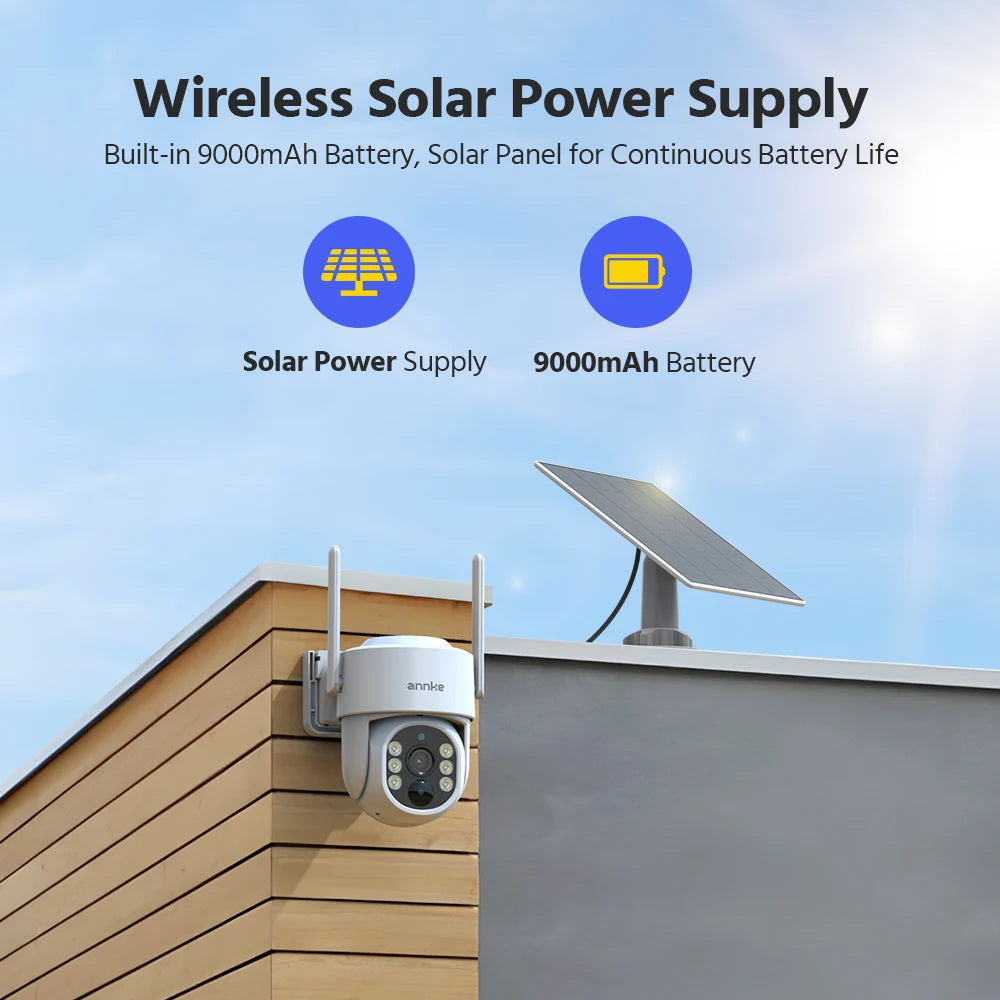

- Eliminate power cords since your solar panel tops up the 9000mAh battery, delivering full-color night vision and reliable dual-band Wi-Fi streaming day or night.
- Securely archive your footage on your local NVR’s SATA port supporting up to 8TB drives, then review live feeds instantly via dual HDMI or VGA monitors.
NVR | ||
Video Format |
H.264+ |
|
IP Video Input |
16CH Wireless |
|
Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M |
|
Max Playback Resolution |
Up to 8M |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 5MP/2CH 8MP |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 8TB capacity(2.5&3.5 inches) |
|
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
3 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
|
Power Consumption |
6 W (Without HDD) |
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|
Dimensions (W X H X D) |
260 X 245 X 47 mm |
|
Weight (Without Hard Disk) |
760 g (Without HDD) |
|
Camera |
Video Resolution |
4MP(2560x1440) |
Image sensor |
1/3" Progressive Scan CMOS |
|
Video compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Lens |
4mm |
|
Angle of View |
70° |
|
Number of Infrared/Color LEDs |
6 |
|
Infrared and full color Distance |
Infrared 15m/Color 8m |
|
PT |
Horizontal 270°, Vertical 90° |
|
Built-in battery |
3.7V/9000mAh 2pcs 21700 |
|
Audio Input/output |
Built-in microphone and speaker |
|
Mini. Illumination |
0Lux (with infrared led on) |
|
Day Night Mode |
Auto change with IR-CUT removable |
|
PIR Sensor |
10 meters |
|
Bluetooth pairing |
support |
|
Internet |
Wireless networks |
2.4G&5.8G dual-band，IEEE 802.11.ax |
Wireless Security |
WEP, WPA, WPA2 |
|
Remote Access |
P2P |
|
General |
Housing |
Plastic |
Operating Voltage |
DC 5V |
|
Solar power |
Support |
|
Storage |
Micro SD(Max 256GB) |
|
Operating Temperature |
-20° ~ 50°C(-4°F ~ 122°F) |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP65 |
|
Mount Option |
Wall mount/Ceiling mount |
|
Dimension (L x W x H) |
||
Weight |
